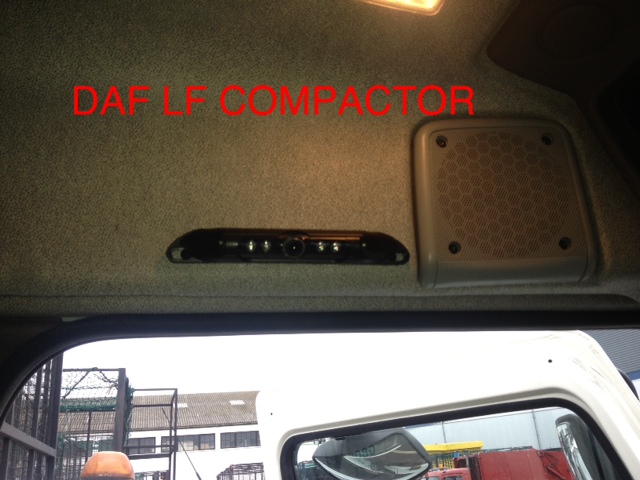

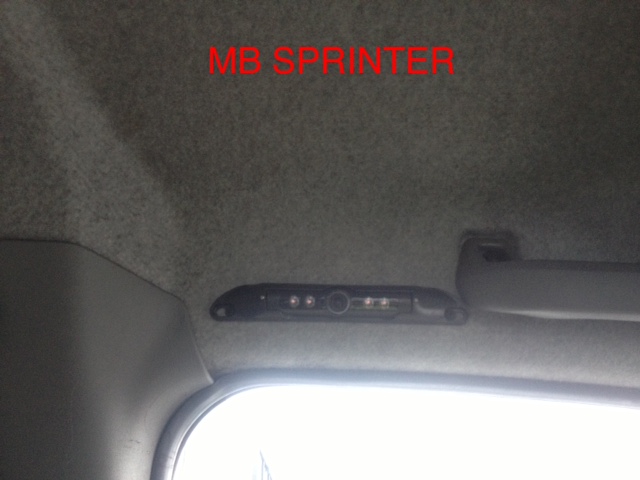

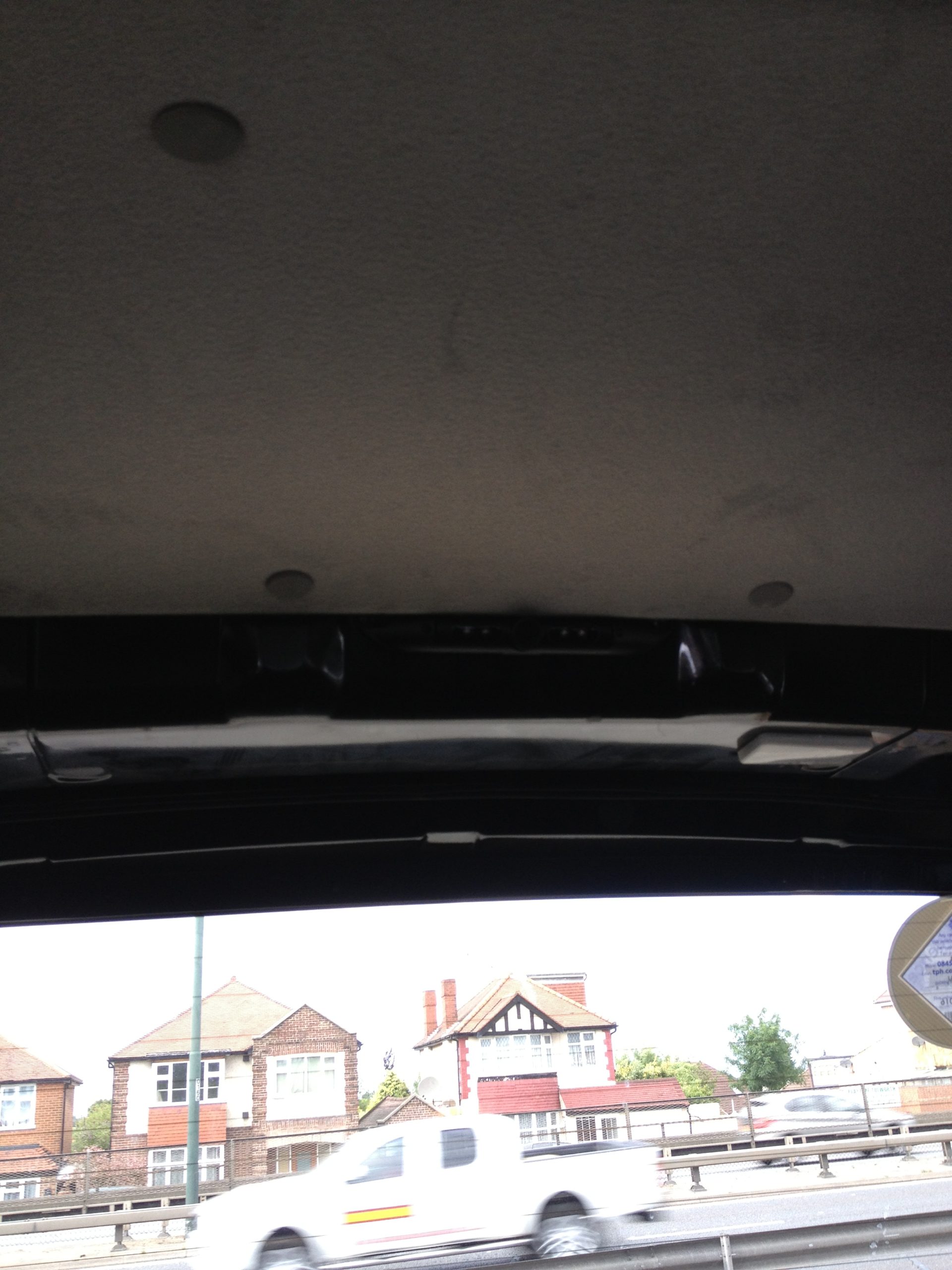

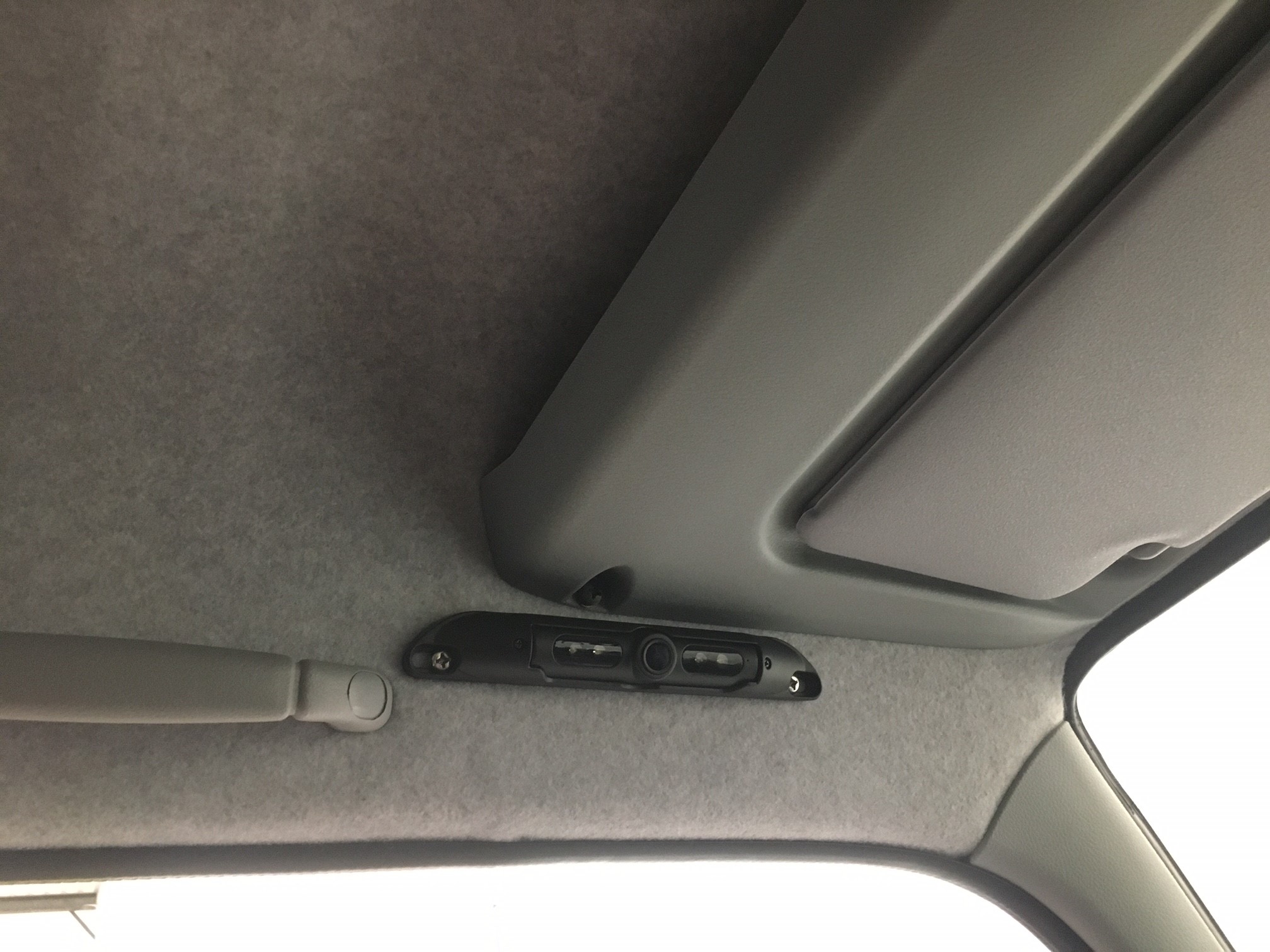

The DN-10VHD is an extremely versatile type approved camera that is ideal for recording inside the cab or load bay. The camera is contained within a sealed cylindrical housing that in turn is fitted into an outer casing, allowing the camera to be rotated within in the housing to achieve the desired visibility.
This is an IP-68 rated camera that features an all metal housing and casing to provide the best possible durability.
The camera is a 1080P Camera so provides the highest resolution images and its wide angle lens makes it perfect for providing exceptionally clear images across a wide viewed area, and features Infra-red LEDs to improve night vision.
SPECIFICATION
| Image device | 1/2.9″ COLOR CMOS |
| Frame Rate | 25fps |
| Effective Pixels | 1920 x 1080 pixels |
| Pixel Size | 2.8um × 2.8um |
| Scanning System | Progressive Scanning |
| Sync. System | Internal |
| Resolution | 1080P |
| Lens | f=1.98mm,F=2.0 |
| Viewing Angle | 150° |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Audio | Yes |
| Video Output | 1.0 Vp-p, 75 Ohm |
| Gamma Consumption | 0.45 |
| AGC | Auto |
| Signal to Noise Ratio | Better than 52 dB |
| White Balance | Auto |
| Electronic Shutter | 1/30(1/25)～1/50,000 Seconds |
| BLC | Auto |
| Current Consumption | Max. 130mA |
| Power Supply | DC12V / DC10～32V |
| Operating Temp. & Humidity | -20 – +70℃ RH95%MAX |
| Storage Temp. & Humidity | -30 – +80℃ RH95%MAX |
Camera Connector Type: 4-pin waterproof avionic.
