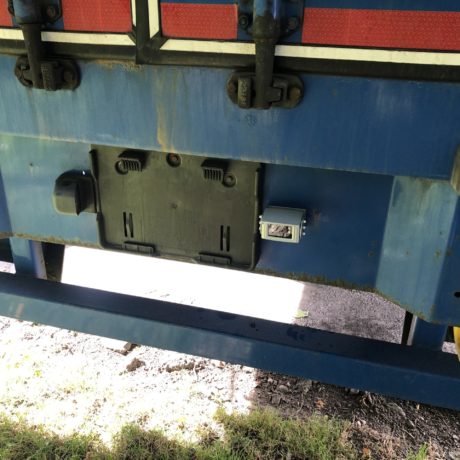

This is a type approved 600TVL camera designed for the toughest environments, yet still providing the perfect solution for many different vehicles types.
In this package the DN2-HD is kitted with our TR-15 Short Range Microwave system and AV leads
| Image Device | 1/2.9″ CMOS |
| Frame Rate | 25 fps |
| Effective Pixels | 1200(H) x 720(V) |
| Scanning System | Progressive Scanning |
| Sync. System | Internal |
| Resolution | 1080P |
| Video Output | 1.0Vp-p, 75Ohm |
| Gamma Consumption | 0.45 |
| AGC | Auto |
| Signal to Noise Ratio | Better than 52dB |
| White Balance | Auto |
| Electronic Shutter | 1/25 (1/30)～1/50,000 Seconds |
| BLC | Auto |
| Operating Temp. & Humidity | -20℃～70℃, RH 95% MAX. |
| Storage Temp. & Humidity | -30℃～80℃, RH 95% MAX. |
Please note due to continued product development the specific chip set used with this camera may have changed from the one indicated but the fundamental characteristics of the camera remain the same.

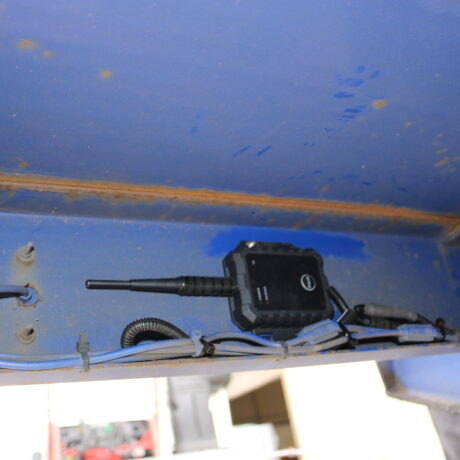

The TR-15 wireless microwave system replaces a conventional wired SUSI connector so avoiding problems with wiring damage or incorrect connection issues associated with using a SUSI connector. Each Transmitter and Receiver is uniquely paired by simply pressing a pair button. Once paired the Transmitter and Receiver remain paired until repaired with a different device.
Camera Connector Type: 4-pin waterproof avionic
