This is a type approved 720P resolution camera designed for the toughest environments, yet still providing the perfect solution for many different vehicles types.
For over a decade Vision UK has been supplying camera chips sets in the DN-2 housing. This housing has evolved over time and has consistently proven to be the most durable camera housing that we have ever supplied.

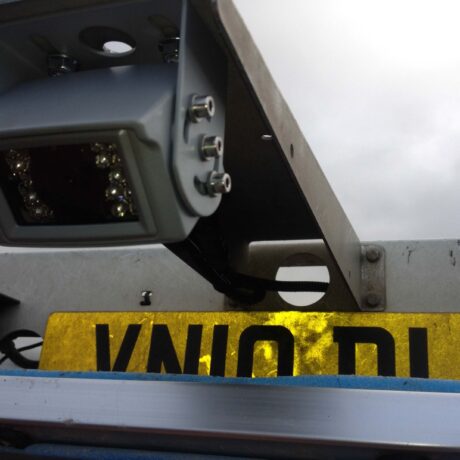

This camera features 4 x light sensor activated CREE LEDs that provide this camera with excellent night vision performance.
Other useful features include a built-in microphone, normal/ mirror image selection screw and an electrically isolated stainless steel mounting bracket.
For driver information purposes a 720P chip set provides better clarity than a traditional analogue camera and the resolution is ideally matched to the Vision 7″ Monitors. For Recording applications the 720P Chip Set often provides the best compromise between image quality and file size.
| Image Device | 1/2.9″ CMOS |
| Frame Rate | 25 fps |
| Effective Pixels | 1280(H) x 720(V) |
| Pixel Size | 2.8 μm × 2.8μm |
| Scanning System | Progressive Scanning |
| Sync. System | Internal |
| Resolution | 7 20P |
| Video Output | 1 .0Vp-p, 75Ohm |
| Gamma Consumption | 0.45 |
| AGC | Auto |
| Signal to Noise Ratio | Better than 52dB |
| White Balance | Auto |
| Electronic Shutter | 1/25 (1/30)～1/50,000 Seconds |
| BLC | Auto |
| Dynamic Range | 81 dB |
| Viewing Angle | 110 deg. |
| Minimum Light | 0 Lux |
| Audio | Yes |
| Operating Temp. & Humidity | -20℃～70℃, RH 95% MAX. |
| Storage Temp. & Humidity | -30℃～80℃, RH 95% MAX. |
| Power Supply | DC-12V |
Please note due to continued product development the specific chip set used with this camera may have changed from the one indicated but the fundamental characteristics of the camera remain the same.
Connector Type: 4-pin waterproof avionic
