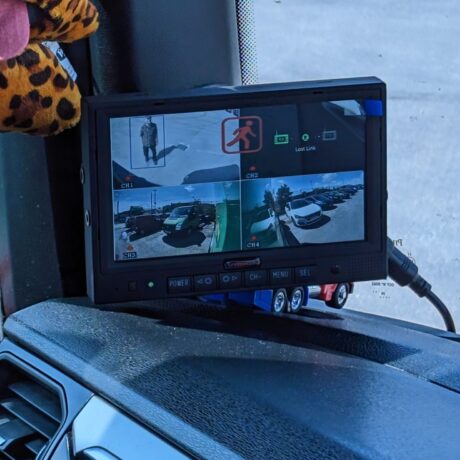

The M-715HD is a type approved extreme duty 7″ monitor can be used with 1080P, 720P and 600TVL cameras so can be used with any of our legacy cameras, and existing installation
Suitable for all vehicles and mobile plant 12-24 volt application.
KEY FEATURES
- High resolution 7.0 inch Colour Digital wide-screen LCD Panel
- Resolution: 1024 x 3 (RGB) x 600
- Contrast: 800:1
- Brightness: 450 cd/m²
- Auto Back Light dimming feature to reduce glare when Night Driving
- 3 AV Inputs with individual trigger wires
- Compatible with AHD and 600 TVL analogue Cameras
- Selectable and adjustable reversing grid
- Menu Lock feature
- Option to set default camera on power up.
- Loudspeaker: 1 Watt
- Trigger wires for auto switching of individual cameras
- Picture adjustable in horizontal, vertical and mirror view
- Snap on sun visor
- Remote control
- Supply: 10-32V
- Operating temperature: -20~+70Cº
- RH 90% Storage temperature: -30~+80Cº , RH 90%
TECHNICAL DETAILS
| Color depth | 24 bit |
| Display colors | 16.7M dithering |
| Power supply | Automobile storage battery (10-32V) |
| Power consumption | about 10W |
| Dimension | 182mm (W) × 122mm (H) × 28.7mm (T) (without flush mount)
199mm (W) × 139mm (H) × 31mm (T) (with flush mount) |
| Dot pitch | 0.1506(H) × 0.1432 (V) |
| Resolution | 1024 x 3(RGB) x 600 |
| Contrast | 700:1 |
| Brightness | 600cd/m² |
| Viewing angle | U: 85°,D: 85°, R: 85°，L:85° |
| Operating temp. & humidity | -20ºC~+70ºC,RH90%MAX |
| Storage temp. & humidity | -30ºC~+80ºC,RH90%MAX |
Connector Type: 4-pin waterproof avionic
