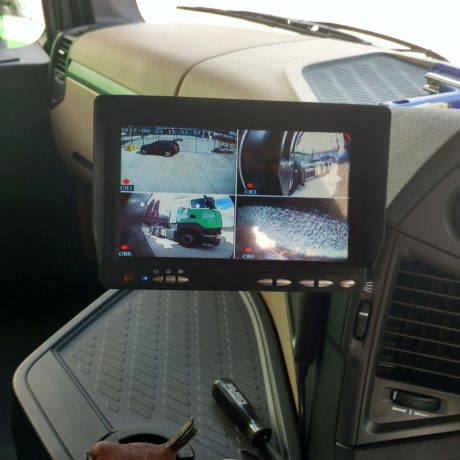

This Professional 7″ Monitor features a high resolution IPS display panel. This monitor boasts a highly efficient housing design that provides for very slim and compact monitor. This monitor resolution is perfectly matched to the output of our latest DVR and HD cameras.
KEY FEATURES
- Compatible with 1080P, 720P and 600TVL Cameras
- Soft touch casing
- Pedestal mount
- Trigger wires for individual cameras
- Selectable Reversing Grid
- RCA Video Output
- Clip on sun visor
- Remote control
- Auto Dim
- Type Approved and RoHS certified
TECHNICAL DETAILS
| Display Size | 7.0″ (16:9) IPS Panel |
| Video System | 1080P/ 720P/ CVBS – 25 FPS |
| Resolution | 1024 x3(RGB) x 600 |
| Brightness | 700 cd/m² |
| Contrast | 700:1 |
| Viewing Angle | U: 85°/ D: 85°, R/L: 85° |
| Aspect Ratio | 16:9 |
| Power Consumption | Approx 14W |
| Power Input | 9V-36V |
| Video Input | 2 CH |
| Audio Input | 2 CH |
| Size | 179mm x 123mm x 29mm |
| Weight | 0.40 KG |
| Operating Temperature | -20~+70℃ |
| Storage Temperature | -30~+80℃ |
Camera Connector Type: 4-pin waterproof avionic (Slimline Camera connectors are a no cost option)
