This Professional Heavy Duty Rear View System features 7″ Colour Digital TFT Monitor. This quad monitor connects with up to 4 cameras and can simultaneously display any combination of cameras in split screen or picture in picture modes.
Suitable for all vehicles and mobile plant 12-24 volt application.
KEY FEATURES
-
- 7 inch Colour wide-screen Quad Monitor
- IP-69 Rated Housing
- Soft touch casing
- 4 cameras inputs
- Choice of 3 mounting fixtures: Pedestal, U-bracket, Flush mount
- Trigger wires for auto switching of individual cameras
- Selectable Reversing Grid
- Single or Quad Video Output for DVR
- Picture adjustable in horizontal, vertical, mirror or normal orientation
- Multi-level auto controlled day/night brightness levels
TECHNICAL DETAILS
| System Format | 1080P30/1080P25/720P30/720P25 |
| Resolution | 1024×3(RGB)x600 |
| Brightness | 600 cd/m² |
| Contrast | 700:1 |
| Viewing Angle | U: 85°/ D: 85°, R/L: 85° |
| Aspect Ratio | 16:9 |
| Operating Temperature | -20~+70℃ |
| Storage Temperature | -30~+80℃ |
| Power Consumption | Max.25W |
| Power for Cameras | Max. 4×500mA, 12V |
| Power Input | 10V-32V |
| Dot Pitch | 0.1506(H)x0.1432(V) |
| Video Input | 4 CH |
| Audio Input | 4 CH |
AV Connector Type: 4-pin waterproof avionic

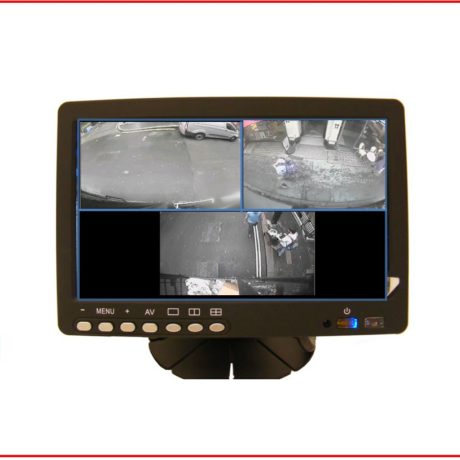

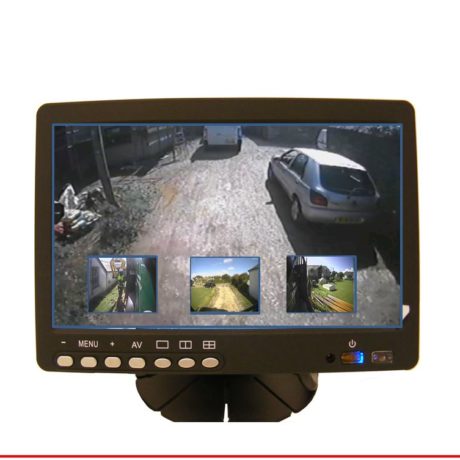

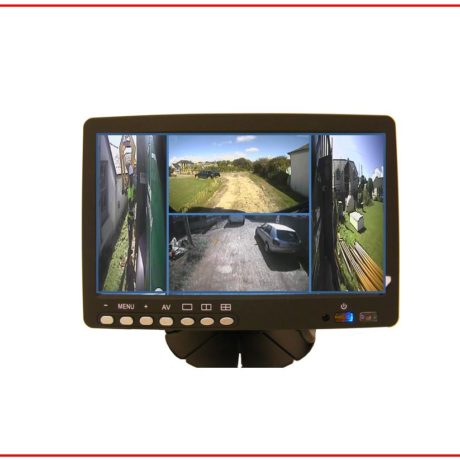

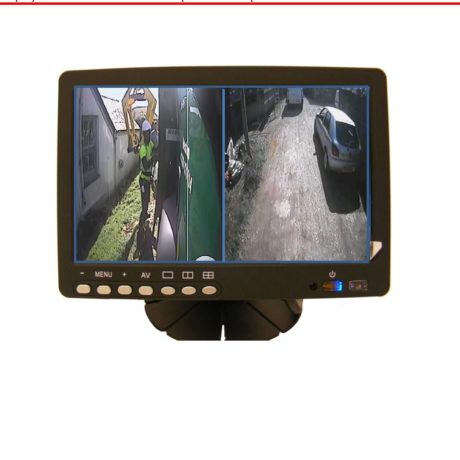

Examples of the available screen layouts are shown in the attached images
