MOIS L/ R BSD Side Camera

SKU: BV-360-1-2-1

This type approved cameras is extremely compact and tough, surface mount camera designed for the harshest applications and is REG-61 compliant for external projections.

This camera features a very wide viewing angle that can provide vision along the full length of the vehicle and features built in Vulnerable Road User and Vehicle Detection.

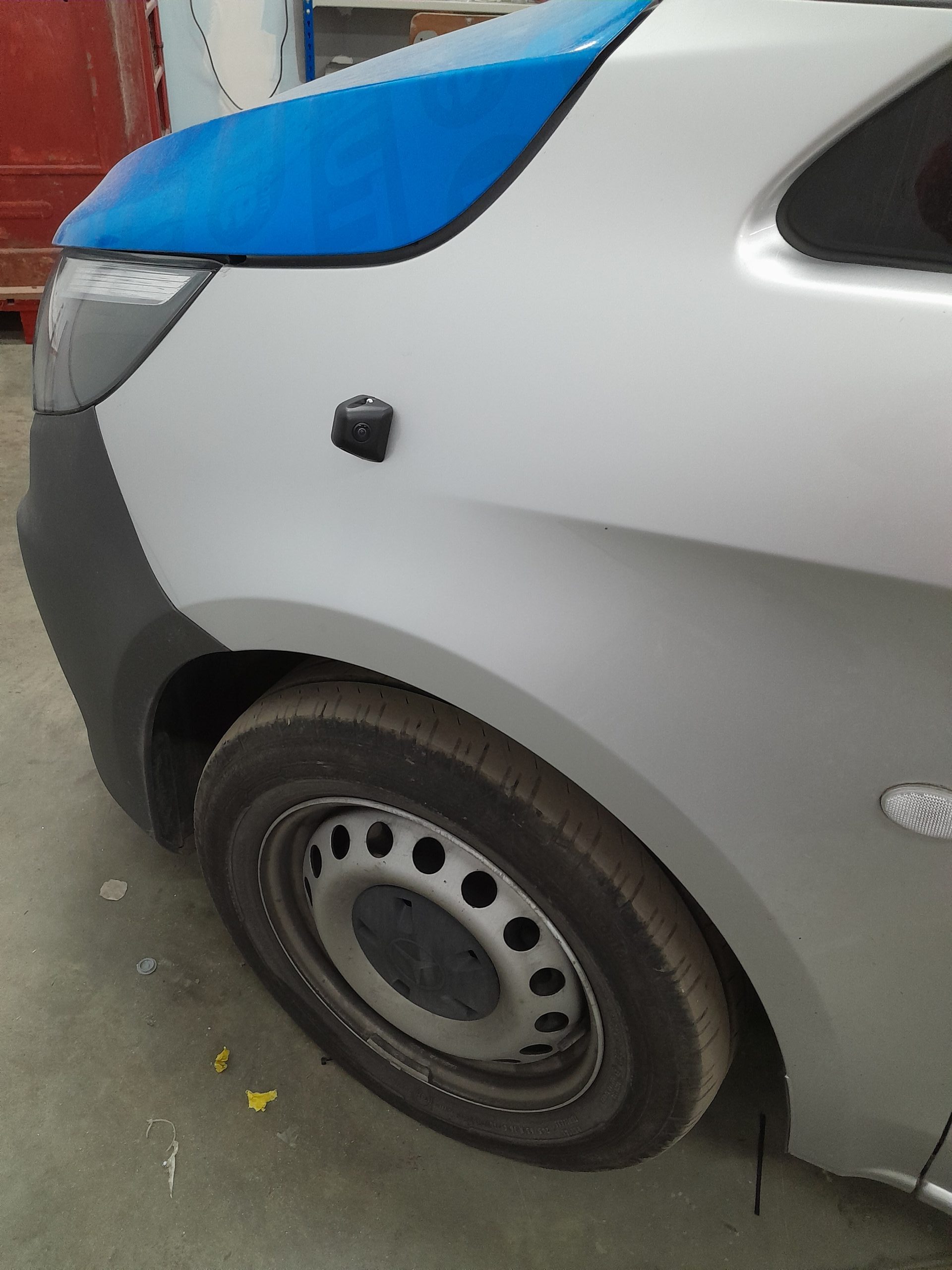

The camera is supplied in left side/ right side mounting versions (specify when ordering)

Note that this camera is not adjustable so must be mounted onto a suitable location for the camera to provide the visibility that is required.  Mounting wedges are available to suit different applications

The Camera is supplied with Eazi-Feed connectors so that only  a small holes is required to bring the wiring into the vehicles and also enables the wiring to be fed through a side mirror for example.

Image Sensor CMOS 1/3” HD
Image ratio 16:9
Dynamic range 83dB
S/N ratio 40dB
View angle 145 degree horizontal
Effective pixel array 1280(H)x720(V)
Max Frame Rate PAL :25 fps  (AI detection is 6o fps)
Storage temp -30℃~+85℃ RH 95% Max
Power supply DC 12V input

Connector Type Eazi-Feed
