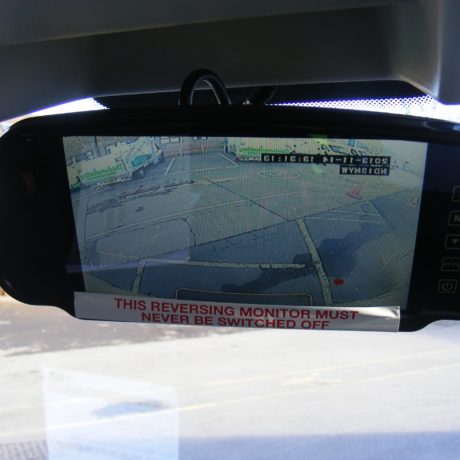

This Clip-Over Mirror 7″ Monitor features our latest generation IPS Monitor Panel and is perfectly matched to the characteristics of our 720P resolution cameras.
KEY FEATURES
- Display Size: 7.0″ (16:9 ratio)
- Compatible with all camera types (CVBS, 720P, 1080P)
- Discrete and robust clip-over mirror mechanism
- Provides individual regulated 12V supply to camera through AV Lead
- Trigger on AV2
- Built in Speaker (1 watt)
- Auto Dim
- Slim-line AV Connectors on the Monitor Harness
- Type Approved and RoHS Certified
TECHNICAL SPECIFICATION
| Display Size | 7.0″ (16:9) |
| Resolution | 1024(H) x 600 (V) IPS Panel |
| Power consumption | Approx. 8W |
| Dimension | 248 mm (W) × 105.5 mm (H) × 28 mm (T) |
| Resolution | 1024 x 3(RGB) x 600 |
| Contrast | 700:1 |
| Brightness | 700cd/m² |
| Viewing angle | U: 55°,D: 55°, R: 65°，L:65° |
| Audio | Channel 2 Only |
| Power Supply | 10-32 Vdc |
| Operating temp. & humidity | -20ºC~+70ºC,RH90%MAX |
| Storage temp. & humidity | -30ºC~+80ºC,RH90%MAX |
